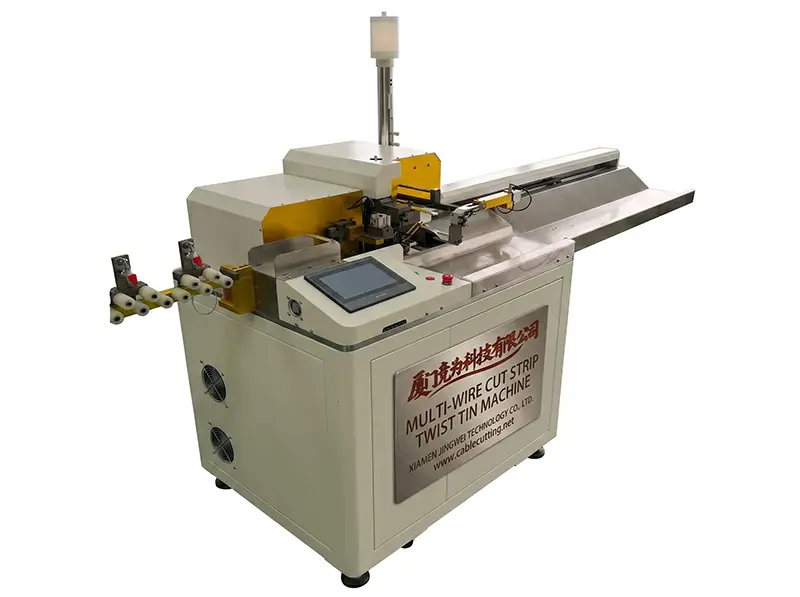

Automatic Multi-Wire Cut Strip Twist Tin Machine WPM-SZ-02

Name: Automatic Multi-Wire Cut Strip Twist Tin Machine WPM-SZ-02
Brand: JINGWEI
SKU: WPM-SZ-02
Availability: InStock
Rating: 5 (1 reviews)

WPM-SZ-02 Multifunction multi-wire cut strip twisting tinning machine, Multifunction Multi-Wire Cut Strip Twisting Tinning Machine, Make Wire Stripping Machine, Full Automatic Both End Cutting Stripping Twisting Tinning Machine
Features:
1. can be double-head tin, single-head twisted tin, double-head twisted tin, ultra-short stripping tin
2. The front-end wire feeding part of the machine adopts two sets of feeding reels. When the machine produces ten lines at the same time, the machine can more stably control the length of the feeding line, and the back-end part adopts a cylinder brake mechanism to perform back-skin peeling.
3. the main use of the PLC control system, its simple operation, accurate positioning, high accuracy, long life, and other characteristics.

Model WPM-SZ-02
Power supply AC220V/50HZ
Productivity 20000-25000pcs/h
Processing range AWG#32-AWG#14(Another wire diameter can be customized)
Cutting length 8mm-99999mm
Peeling length 0.1mm-10mm
Twisting wire length 0.1-10mm
Air pressure 0.5-0.7Mpa
Dimension 1200-800-1200
Weight 370KG

What are the main functions of the Automatic Multi-Wire Cut Strip Twist Tin Machine WPM-SZ-02?

The WPM-SZ-02 is a fully automated, multi-function wire processing machine. Its primary operations include cutting wires to length, stripping insulation from both ends, twisting the exposed conductors, and tinning (applying solder) to the twisted ends. It performs all these functions on both ends of the wire simultaneously, making it a complete end-to-end solution for preparing harness wires.

What wire sizes and production speed can this machine handle?

This industrial wire processing machine is designed for high-volume production, capable of handling wire gauges from fine AWG #32 up to AWG #14. It achieves an impressive output of over 20,000 processed pieces per hour, making it ideal for demanding cable harness manufacturing and other applications requiring efficient, large-scale wire preparation.

How is the precision and consistency of the machine controlled?

Precision is ensured through a Programmable Logic Controller (PLC) system. This PLC wire processor allows for exact digital control over all cutting, stripping, twisting, and tinning parameters. Operators can store and recall programs for different wire specs, guaranteeing consistent, repeatable results batch after batch while minimizing human error and material waste.

What are the key benefits of using an automatic machine like the WPM-SZ-02 over manual processing?

The key benefits are dramatically increased productivity, superior consistency, and reduced labor costs. By automating cutting, stripping, twisting, and tinning in one integrated cycle, it eliminates multiple manual steps. This leads to higher throughput (20K+ pcs/hour), uniform quality for reliable connections, and significant savings in time and operational expenses for industrial wire processing.

In which industries or applications is this multi-wire machine most commonly used?

The WPM-SZ-02 is essential in industries that require high volumes of precisely prepared wire leads. This includes automotive cable harness manufacturing, appliance wiring, consumer electronics, industrial control panel building, and any sector producing electrical assemblies. It is particularly valuable for applications where twisted and tinned wire ends are needed for soldering or terminal connections.
