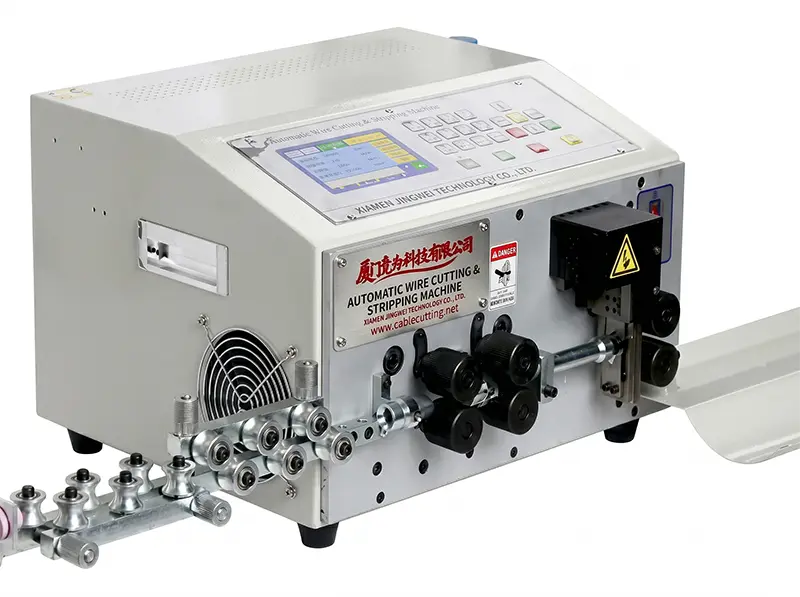

25mm² Automatic Wire Cutting & Stripping Machine WPM-MAX1-6

Name: 25mm² Automatic Wire Cutting & Stripping Machine WPM-MAX1-6
Brand: JINGWEI
SKU: WPM-MAX1-6
Availability: InStock
Rating: 5 (1 reviews)

The WPM-MAX1-6 is a 25mm2 automatic wire cutting and stripping machine that can efficiently cut, strip, and process wires with precision.
Wire Cutter And Stripping Machine, Wire Stripping And Cutting Machine, Wire Cutting And Stripping Machine
Model Number WPM-MAX1-6
Name Automatic wire cutting and stripping machine
Function for cutting, stripping
Cutting Length 1-9999mm
Stripping Length Front: 50mm; Rear: 50mm
Voltage 220V/110V
Power Rate 400W
Cutting tolerance (0.2+/- 0.002 by L) mm
Cutting Stripping wire core section 0.1-25mm2
Optimal stripped wire: PVC// silica gel line, Glass fiber cables, etc.
The blade material: hard tungsten steel output L = 100 mm, 3000-8000 PCS/h (high yield)
Weight 35KG
Dimension 420*390*280mm

What is the wire size range and processing speed of the WPM-MAX1-6 Automatic Wire Cutting & Stripping Machine?

The WPM-MAX1-6 is designed for high-yield processing, handling wire cross-sections from 0.1mm² to 25mm². It operates at a speed of 3000 to 8000 pieces per hour, making it ideal for industrial-scale cable processing where efficiency is critical.

What types of cable insulation can this automatic wire stripper process?

This machine is versatile and effectively processes common insulation materials including PVC, silica gel, and fiber cables. Its robust design and precision blades ensure clean cuts and strips without damaging the conductor.

What are the key features of the cutting and stripping mechanism?

The machine is equipped with durable hard tungsten steel blades, known for their exceptional wear resistance and sharpness. This ensures consistent, clean cuts and strips over extended periods, reducing blade replacement frequency and maintenance downtime.

What are the power requirements for the WPM-MAX1-6 machine?

The machine is powered by a 400W motor and offers flexible voltage options, operating on either 220V or 110V. This makes it suitable for use in various international industrial settings without the need for complex power converters.

Who is the ideal user for this automatic wire cutter and stripper?

The WPM-MAX1-6 is engineered for industrial applications requiring high-volume wire processing, such as in automotive harness manufacturing, appliance production, and electrical equipment assembly. Its high speed, wide wire range, and durable construction make it perfect for workshops and factories focused on productivity and reliability.
