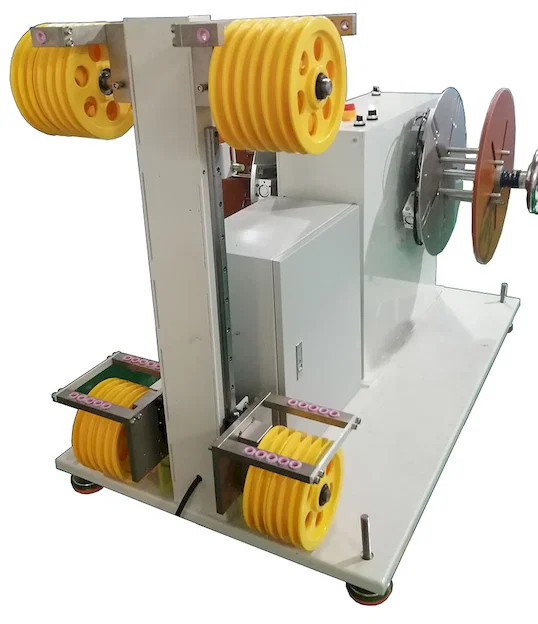

Large double tie type automatic meter cutting wire stripping machine
Large double tie type automatic meter cutting wire stripping machine Large double tie type automatic meter cutting wire stripping machine Large double tie type automatic meter cutting wire stripping machine
  • Large double tie type automatic meter cutting wire stripping machine

  • item No : WPM-CPRT-02TH
  • Large circle double tie type automatic meter cutting wire stripping and winding machine WPM-CPRT-02TH
    Applicable wire diameter 2-5mm
    Cutting length 3-40m
    Cutting line length accuracy: ±2mm/m
    Round tie appearance single/double tie strap, split end, and end, diagonal side
    The inner diameter of the circle 300-400mm (adjustable)
    Binding diameter ≤40mm
    Desquamation mode complete desquamation at both ends
    Head and tail peeling length 20-50mm (adjustable)
    Head retention length 250-300mm (adjustable)
    Tail length 300-400mm (random value within the interval)
    Production efficiency: 180-300pcs /H (2-40m)
    Applicable binding tape: Coated iron core ≤ 7.5kg/roll
    Power supply: NATIONAL standard 220V/50Hz
    Machine power: 4.5KW/H
    Machine size: about 2500L*1100W*1850Hmm
    Machine weight: about 1000KG

  • Inquiry now
Detailed description
Large circle double tie type automatic meter cutting wire stripping and winding machine WPM-CPRT-02TH
Technical parameters:
Applicable wire diameter 2-5mm
Cutting length 3-40m
Cutting line length accuracy: ±2mm/m
Round tie appearance single/double tie strap, split end, and end, diagonal side
The inner diameter of the circle is 300-400mm (adjustable)
Binding diameter ≤40mm
Desquamation mode complete desquamation at both ends
Head and tail peeling length 20-50mm (adjustable)
Head retention length 250-300mm (adjustable)
Tail length 300-400mm (random value within the interval)
Production efficiency: 180-300pcs /H (2-40m)
Applicable binding tape: Coated iron core ≤ 7.5kg/roll
Power supply: NATIONAL standard 220V/50Hz
Machine power: 4.5KW/H
Machine size: about 2500L*1100W*1850Hmm
Machine weight: about 1000KG

Main accessories:
Cylinder: Yadeke cylinder and solenoid valve
Motor: Winding main servo motor 1500W Turbot
Motor: take line translation servo motor Turbot 750W
Motor: online translation servo motor Dongling 750W
Motor: winding up and down 57-step thunder race
Motor: Twisting and strapping belt spitting belt 57 stepper motor thunder race
Motor: storage tape motor 6W
Slide block: take line translation double slide block
Guide rail: lower paw translation double guide rail
PLC: vigor
Screen: Dimension control 7"
Power supply: clear weft
Frame: the iron frame is painted blue and white
Safety protection: stop when the door opens
Lack of material alarm: three-color lamp buzzes
Frame: the appearance of iron frame is painted blue and white
Supporting high-speed active winding machine CY-P01-150KG features:
Automatic frequency conversion, step-less variable speed,
With line storage function
Tension function
Deceleration function
Incoming material capacity ≤100KG
Incoming wire tray inner hole diameter 60-80mm
The outer diameter of the incoming hollow reel is ≤630mm
The thickness of the incoming wire coil is ≤500mm
Machine power: 2.2KW
Machine size: about 1450L*800D*980Hmm

Machine weight: about 150KG
