Fully automatic 2P parallel wire single head dipping tin through shell terminal machine
Fully automatic 2P parallel wire single head dipping tin through shell terminal machine
  • Fully automatic 2P parallel wire single head dipping tin through shell terminal machine

  • item No :
  •  Fully automatic 2P parallel wire single head dipping tin through shell terminal machine. wire insert plastic plug machine, View Parallel wire insert shell plug machine
  • Inquiry now

Detailed description

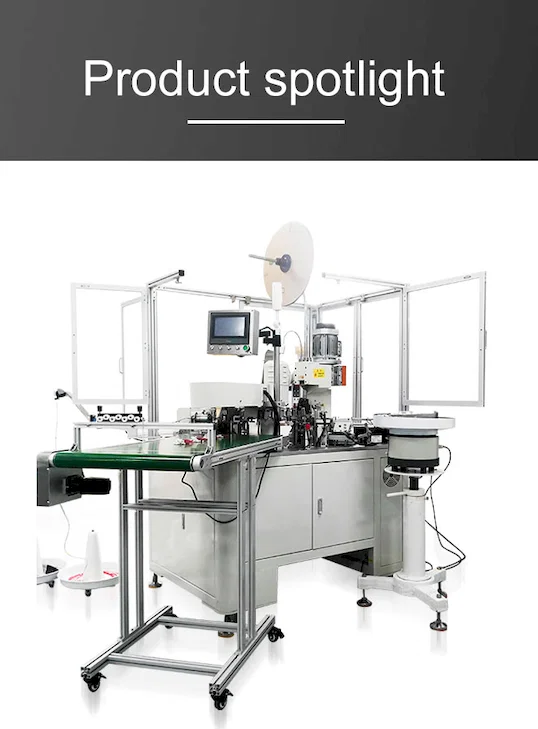

Fully automatic 2P parallel wire single head dipping tin through shell terminal machine. wire insert plastic plug machine, View Parallel wire insert shell plug machine
is suitable for 2P parallel wire, electronic wire single head tinning/crimping and shell-through processing, wire insert plastic plug.
Suitable for 1.25terminal, 2.0 terminal, 2.5 terminal etc. Cutting wire length 25mm-450mm

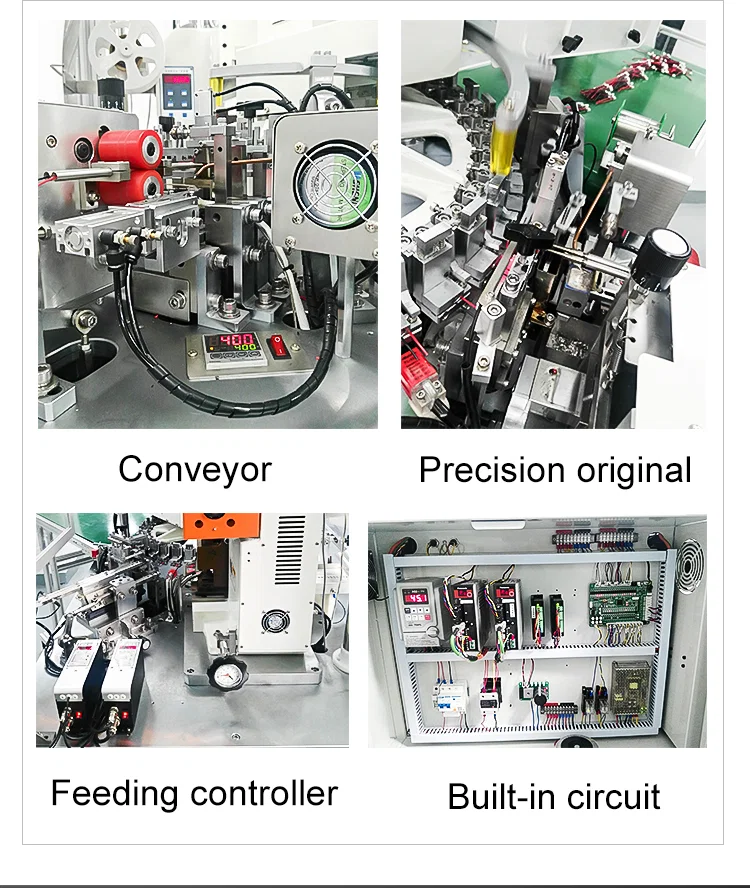

Features: Automtiac feeding, cutting, stripping(Peeling) , Tin dipping, Hit the end, wearing shell(Insert plug)
The single head rubber shell machine can be used for 2P paralleing, single end tinning of two electronic wires, crimping and shell through processing(Electronic wire can be different in length).
The cutting and stipping mechanism adopts the most stable and relaible structure. Greatly enhance the precision and stability of the machine's tagent and peeling.
Terminal crimping can be equipped with pressure monitoring system, CCD monitoring system and CPK value system.
The pulling force of the rubber shell can be set according the size of the wire, and the good and bad products can be automatically classified, counted and placed.
The rubber casing machine adopts a modular structure, and different rubber casings only need to simply replace the virbating plate, track and die.
The control mechanism adopts the parameterized control of the man-machine interface and can issue a terminal pull-out force curve anaylsis report; equipped with an ultra-high-definition vision system, it can realize real-time image display, comparsion, and analysis of the products, and an alarm will be issued when the crimping is bad and automatically filtered defective product. This design greatly saves labor costs, guarantees product quality, and improves production efficiency.
