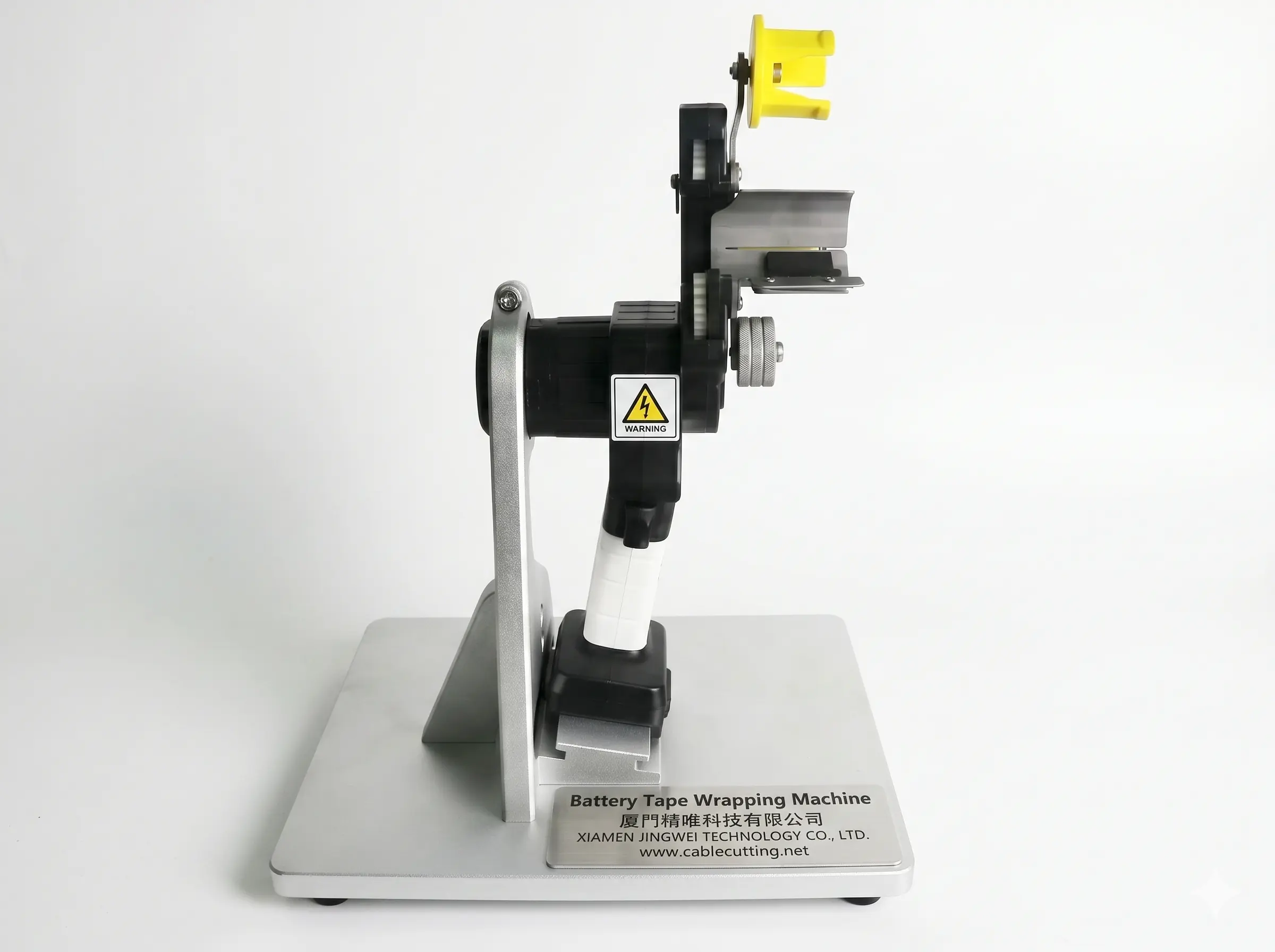

Desktop battery tape wrapping machine
Desktop battery tape wrapping machine
  • Desktop battery tape wrapping machine

  • item No : AT-101D
  •  Desktop battery tape wrapping machine with a built-in 6000 MA lithium battery, It can be used continuously for about 5 hours when fully charged, It is very small and flexible. The weight of the machine is only 1.5 kg, and the open design can start wrapping from any position of the wire harness.

    1. Can work with many kinds of material tapes
    2. Lightweight, easy to move and not easy to feel tired, high efficiency
    3. Simple operation, operators only need simple exercises
    4. Easily adjust the distance of the tape and overlap, reducing the waste of tape
    5. After cutting the tape, the tool automatically jumps to the next position for the next preparation, no additional process
    6. The finished products have appropriate tension and no wrinkle

  • Inquiry now
Detailed description

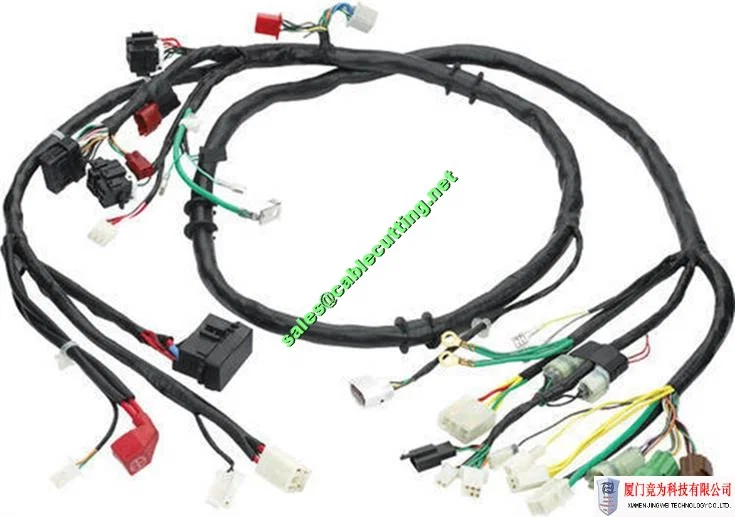

Desktop battery tape wrapping machine with a built-in 6000ma lithium battery, It can be used continuously for about 5 hours when fully charged, It is very small and flexible. The weight of the machine is only 1.5kg, and the open design can start wrapping from any position of the wire harness, it's easy to skip the branches, and it is suitable for tape wrapping of wire harnesses with branches, often used for wire harness assembly board to assemble wire harness.
1. Can work with many kinds of material tapes
2. Lightweight, easy to move and not easy to feel tired, high efficiency
3. Simple operation, operators only need simple exercises
4. Easily adjust the distance of the tape and overlap, reducing the waste of tape
5. After cutting the tape, the tool automatically jumps to the next position for the next preparation, no additional process
6. The finished products have appropriate tension and no wrinkle
Model AT-101D
Available Wire Diameter 8-35mm
Tape Width 10-25mm ((Other can be customized)
Tape Roll OD Max Φ110mm(Other can customize)
Wrapping Speed Manual control
Power Supply 110/220VAC, 50/60Hz
Dimensions 33*18*15cm
Weight 4kg
Article updated November 15, 2020

 Desktop battery tape wrapping machine for wrapping tape cable
